Specification Summary:
Bolton Gate Company’s Insulated Rolling Shutter offers the benefit of a multipurpose solution when there is a requirements for sound or thermal insulation, high security or even weather resistance. The combined attributes can easily assist in compliance with the environment demands that are increasing relevant today.
A wide range of options including drive systems, operating controls and also various finishes effectively allow our Clients to specify a bespoke, high quality, yet cost effective solution to sit their needs.
The Insulated Rolling Shutters doors have been used extensively on projects both in the UK and worldwide where their integral strength and robust design assures continued reliability and trouble free operation and optimum design life.

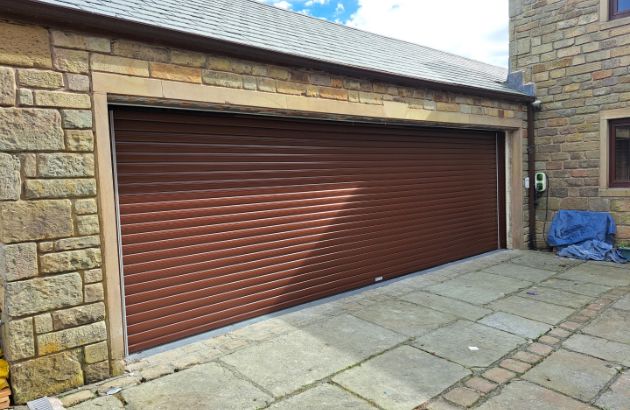

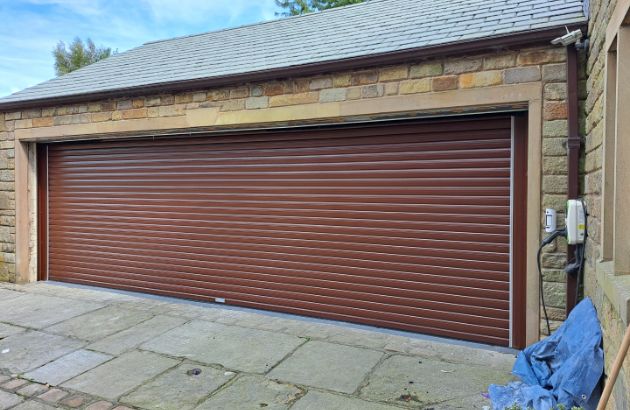

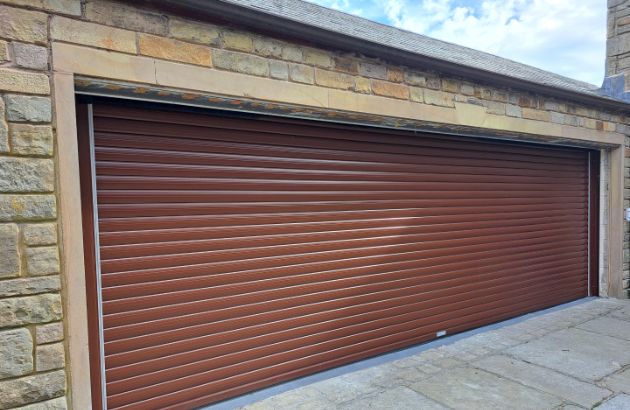

The Insulated Door system is perfectly suited for a wide range of applications such as Loading Bay doors ; Factory entrances; Boiler and Turbine Halls; Recording or TV Studios but also, due to its aesthetic appearance, it is equally suited for office entrances or storage areas or even domestic garage doors.
Tubular Motor
Direct Drive Motor
Manual overrides are provided for use in event of power failure.
The shutter curtain is constructed using continuously interlocked 95mm deep galvanised steel foam bonded insulated laths secured by endlocks.
An extruded aluminium bottom rail is provided complete with rubber weather seal.
Vertical side guides are formed from rolled galvanised steel in a double rebate profile and fitted with twin brush strips. Full height angles are provided for mounting the structure.
The roller is constructed from seamless steel tube of adequate diameter to resist deflection and held in bearings attached to the endplates.
Formed using prime painted mild steel of thickness to suit the respective opening size.

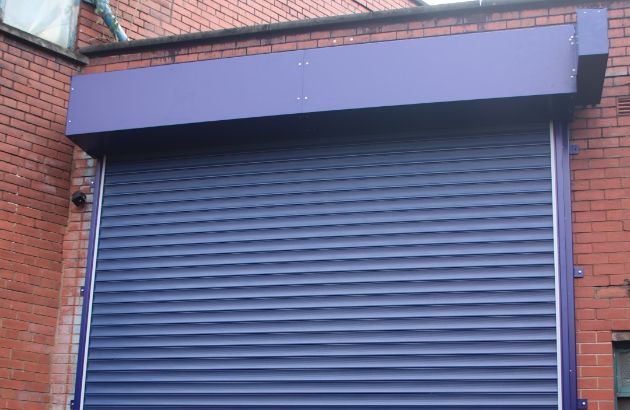

A galvanised steel coil casing and motor casing are provided as standard to close off the operating mechanism and complete the aesthetic appearance of the door. On the tubular motor system, the coil casing is a more compact chamfered design.
Galvanised steel is the default finish but please refer to Options below for alternatives.
Tubular Motor option: 6000mm wide x 3000mm high
Direct Drive option: 10,000mm wide x 10,000mm high
(Please contact our sales team to discuss if there is a requirement beyond these dimensions).
Polyester powder coat finish.
Plastisol finish to curtain, remaining components with a polyester powder coat finish.
Grade 304 or 316 stainless steel.
Double glazed vision panels.
Additional electrical controls e.g.: –
Varies with opening size but approximately 45kg/m².
